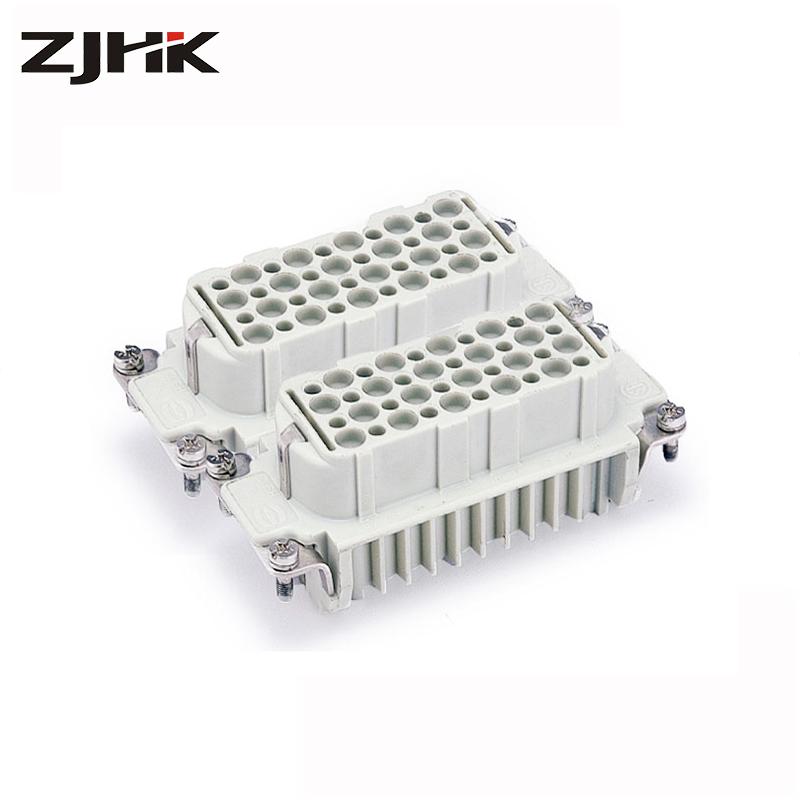

HD Series 80 Pin Power Terminal Male Female Electrical Heavy Duty Connector

Description

The wire connection of HDC inserts are designed as screw terminal, crimp terminal, tension clamp terminal and quick lock terminal for various wire range. The inserts are made from high-quality insulation materials, which provide a safe transmission of high voltages (upto 1000V) in a small space. Combined together with housing base, the HDC kit creates a reliable quick disconnection for different industrial and automation applications. Beside, by choosing from our modular connector HM series, it is possible to integrate signals, power, pneumatics and data communication into a single connector.To withstand harshest environmental factors like corrosion and impact, we provide durable and light weight housings. By providing hundrends of variations of construction, mounting, entry and size, our customer can match their specific application easily.

Specification

Inserts

Number of Contacts : 80(2 x 40) + PE
Electrical Data : 10 A 250 V
Working Current : 10A
Working Voltage : 250V
Rated impulse Voltage : 4KV
Pollution Degree : 3
Insulation resistance : 10¹⁰
Flammability UL94: VO
Material : GLASS FIBRE REINFORCED PC

Mating cycle : 500

Contacts
Material : Copper alloy
Surface : Hard Silver plated
Contact resistance : ≤3mΩ
Screw terminal mm2 : 0.14 - 2.5mm²

Hood/Housing
Material : Die-Cast aluminum
Surface : Powder Coated
Locking Element : Zinc plated / Corrosion resistant stainless steel 304
Temperature Range : -40C + 125 0C
Degree of Protection: IP65

About Us

Our Service

• Flexible design - we own mold center to design and develop new models upon customers specific requirement.
• Design of Customers logo and name by laser printing is available.
• Fast delivery - we have a large stock for various inserts and covers, upto 2000pcs each part.
• Delivery will be finished within 2~7 days, delivery by DHL/FEDEX/TNT or by sea shipment are both ok.
• Indivisual packing for each part or assemblied complete set packing are both available.
• After sales service: 12 month for quality warranty.
• Our parts can work well with parts from Harting brand ( same part number), which helps our customers select the correct part easily and avoid any mistake.
• Test machines - enable us to quantee our quality 100%
• ISO-9001:2008 approved

Zhejiang Haoke Electric Co., Ltd is a professional factory engaged in design, manufacturing and sales of Heavy Duty Connector ( Industrial Connector / Rectangular Connector) with registered capital assets of 10 million RMB.

Haoke constantly introduces cutting-edge technology, professional talent and sophisticated equipment to drive-on the steady enhancement of the performance of our product series.

Haoke has launched the HA, HE, HEE, HD,HDD, HSB, HM and HQ product series, and provides hundreds of combinations to meet electrical or signal connecting requirements in different fields and for different purposes.

Haoke now acts as a supplier for a number of Fortune 500 companies.

Experiences:  Specializes in manufacturing connector more than 7 years

Certificate: UL,CE, CQC, SGS,ROHS, ISO9001

Workers: 90

Engineers: 10

QC: 5


Output: 100,000 pcs each month

Workshop: 10,000 mm² with 10 assembly lines

Production line: Molding, Injection, Die casting, Punching, Polishing, Laser printing, Surface treatment, Assembly and Packing.
