We Make the Connections More Reliable Contact Us: Mr. Nelson Tel:0577-61676777 0577-61676776 Mobile&WhatsApp:+86 18067786591 Email: nelson@zjhkele.com Website: www.zjhkele.com
8 Years
| Ask Lasest Price | |
| Brand Name : | ZJHK |
| Model Number : | HEEE-064-MC / HEEE-064-FC |
| Certification : | CE, RoHS, SGS, CQC |
| Price : | negotible |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 5 Days |

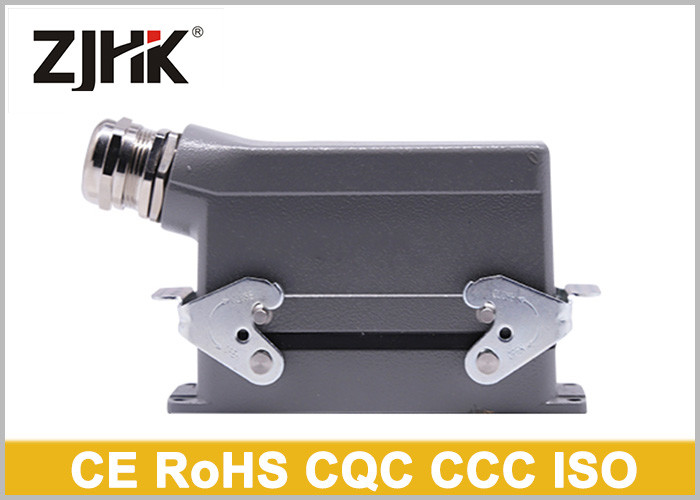

HAN EEE Type 64 Pin Rectangular Heavy Duty Connector Replace Harting
Description
Heavy Duty Connectors is designed for harsh environments. Beside
the standard connectors (6~24pins at 16A, 500V), we also offers
many more series with a high number of pins (up to 216) and high
current of up to 200 A. The housings are made from aluminum
die-cast with a degree of protection IP 65 from liquid or mechnical
stress. Besides, our HM series with Frame provide our customers a
quick and efficient solution to connect power, singal, data,
pneumatics, etc into a single frame. Besides, with the help of guid
pins, our customer can avoid mis-mating when many same models are
installed on one machine.
Specification
| Numbers of contacts | 64+PE |
| Electrical performance according to | EN 61984 |
| Rated current | 16A |
| Rated voltage ( conductor to conductor) | 500V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| or | 16A 830V 8KV 2 |
| Rated voltage according to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Flammability according to (UL94) | V0 |
| Working temperature | -40℃±125℃ |
| Mechanical working life - mating cycles | ≥500 |
| Contacts: | |
| Material | Copper alloy |
| Surface | Silver Plated, Gold Plated |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| Wire gauge | 0.14-4.0mm2 |
| AWG | 26-12 |
| Stripping Length | 7.5mm |
Application:
Certificate: CE, ROHS, CQC, CCC, ISO2008:9001
Produciton Ability: We own 10000mm2 workshop and 70 skilled staff to output 100,000pcs each month
Variety of Designs: We own hundrends of molds and various advance machine to enable us to design and develop new models according to customers specific requirement.
Compitable with Harting: Our parts can work well with parts from Harting brand ( same part number), which helps our customers select the correct part easily and avoid any mistake. Meanwhile, our connectors can replace IMLE, WEIDMULLER, SIBAS, TYCO connector.
OEM: Customers logo and name by laser printing is available.
Shipping:
1. Products are shipped via sea or via Internation Express such as
UPS / DHL / EMS / FedEx / TNT.
2. We Provide DDP Service to Europe countries and Russia ( Free Tax
and Duties) by air or by road.
3. Fast Delivery within 5 days for most of orders. Bulk order of
qty more than 1000 sets or customized models will take 10~15 days.
4. Delivery via. EMS. UPS. FedEx and TNT express usually takes 5~10
days dependent on the destination country. DDP will take 15~20
days. By sea will take 20~40 days upon destination port.
|
|
