| Brand Name : | ZJHK |
| Model Number : | HEE-046-MC / HEE-046-FC |
| Certification : | CE, RoHS, SGS, CQC |
| Price : | negotible |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 5 Days |

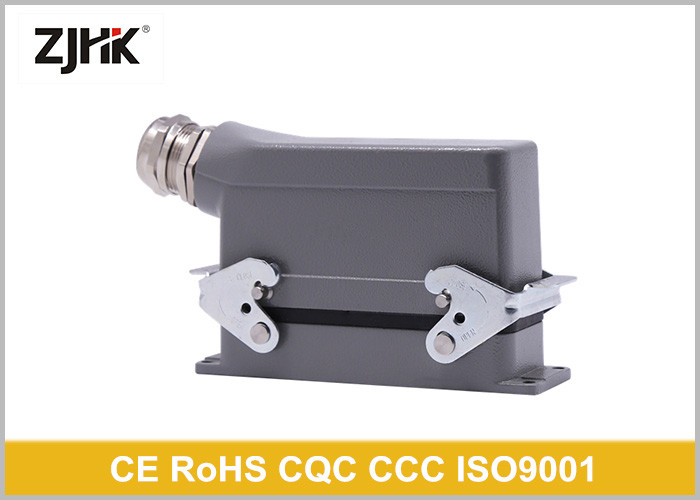

Rectangular Heavy Duty Industrial Connector 46 Male Female Crimp Contact Pins
Quick Details
1. Inquiry responded within 24 hours with detaled price and technic data.
2. We provide 1 year warranty and If the product is defective, please notify us within 3 days of receipt.
3. Free Samples available
4. Easy Payment: T/T, L/C, Paypal, Western Union, etc
5. Fast delivery
Description
| Inserts | |
| Number of Contacts : | 46 + PE |
| Working Current : | 16A |
| Working Voltage : | 500V |
| Rated impulse Voltage : | 6KV |
| Pollution Degree | 3 |
| Insulation resistance : | 1010 |
| Flammability : | VO |
| Material | GLASS FIBRE REINFORCED PC |
| Mating cycle : | 500 |
| Contacts | |
| Material : | Copper alloy |
| Surface : | Hard Silver plated |
| Contact resistance : | ≤1mΩ |
| Crimp terminal | 0.14-4.0mm2 |
| Stripping Length | 7.5mm |
| Hoods/Housing | |
| Material : | Die-Cast aluminum |
| Surface | Powder Coated |
| Locking Element : | Zinc plated / Corrosion resistant stainless steel |
| Temperature Range : | -40C + 125 0C |
| Degree of Protection | IP65 |
Features
A. We are professional Manufacturing for Heavy duty connector 7 years with CE, Rohs, SGS, CQC certificated and ISO9001:2008 approved.
B. All mold and each spare part are made at our own workshop.
C. Raw Material supplied by SABIC (Glass fibre reinforced) to ensure the electrical functioning.
D. All pins (contacts) are made by H62 brass with silver plating (standand 3 μm thickness or upon customer requirement).
E. 72 hour Salt Spray Withstand and 500 Plugging Cycle Test Approved.
F. Strict Quality Check - 100% check before selling
G. Our connector are ready to replace Harting Han Connector, TE / Sibas, ILME, Phoenix, Weidmuller, Molex connectors effectively.
FAQ:
Q: Is sample available and free?
A: Free sample is available , but the freight cost should be payed by you.
Q: Do you have MOQ?
A: We have plenty of stock and for standard models, No MOQ requirement. For customized models, we require 100pcs.
Q:How to order?
A:Please send us your PO by email or fax and we willsend you a
proforma invoice.
Q: What certificate do you got ?
A:We got CE, RoHS , SGS , ISO, CQC, CCC.
Q: What's the delivery time ?
A: It usually takes 7~10 days for bulk order, for small order 24
hours will be enough. Customized order will take some more time.
|
|
