| Brand Name : | ZJHK |
| Model Number : | H16A-SE-2B |
| Certification : | CE, RoHS, SGS, CQC |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 5 Days |

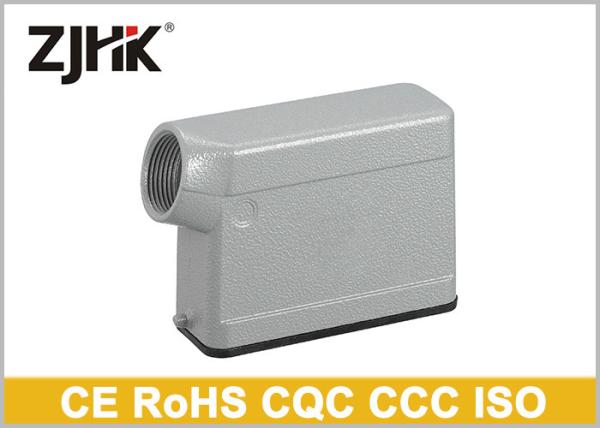

Industrial Housing H16A-SE-2B for 16 Pin Wire Connector 09200161541
Specification
| Name | H16A Metal Hood and Housing |
| Brand | ZJHK |
| Material | Die cast Aluminium Alloy |
| Finish | High Temperature Powder Coated |
| Color | Grey RAL 7037 |
| Locking Type | Single Lever |
| IP65 acc.to DIN EN60 529 | Anti Dust, liquid, mechanical stress |
| Temperature | -40°C-125°C |
| Inflammability class acc. to UL94 | V0 |
| Certificate | CE, RoHS, CQC, SGS, ISO9001:2008 |
| Hot Sale Region | Europe, Korea, Australia, Egypt, Southeast Asia, India, Brazil, Saudi |
| OEM | Available |
Features
1. Locking elements: Anti-corrosion Stainless steel 304 grade
2. Seals: NBR waterproof
3. Removable covers in plastic or metal material is available
4. Thread PG16, PG21, M20 or M25
5. High constructio for larger wires
6. Cable Gland: Yes.
About Us
Zhejiang Haoke Electric Co., Ltd was established in 2011 and
located in Liushi town, Yueqing city, China.
We have developed more than 10 series of heavy duty connector,
including insert HA, HE, HEE, HD, HDD, HK, HM, HSB, HQ etc and
Housing 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, 48B etc, And
every year we design new series according to market requirements.
With CE, ISO9001 approved, we are supplying our customers in high
quality and competitive price.
Our connectors are exported to over 50 countries and areas such as
Russia, Britain, Poland, Australia, France, Italy, Korea, Malaysia,
Indonesia, India, Thailand, Brazil, etc and our quality is well
accepted.
ZJHK connector perfectly match Harting, ILME, Weidmuller, TE SIBAS connectors and we are striving to be your top supplier of heavy duty connector.
Production Family
| hood side entry with 2 bolts M20 thread | H16A-SE-2B-M20 | 19200161540 |
| hood side entry with 2 bolts PG16 thread | H16A-SE-2B-PG16 | 09200161541 |
| hood side entry with 2 bolts M25 thread (high construction) | H16A-SEH-2B-M25 | 19200160546 |
| hood side entry with 2 bolts PG16 thread (high construction) | H16A-SEH-2B-PG16 | 09200160540 |
| hood side entry with 2 bolts PG21 thread (high construction) | H16A-SEH-2B-PG21 | 09200160541 |
| hood top entry with 2 bolts M20 thread | H16A-TE-2B-M20 | 19200161440 |
| hood top entry with 2 bolts PG16 thread | H16A-TE-2B-PG16 | 09200161441 |
| hood top entry with 2 bolts M25 thread (high construction) | H16A-TEH-2B-M25 | 19200160446 |
| hood top entry with 2 bolts PG16 thread (high construction) | H16A-TEH-2B-PG16 | 09200160440 |
| hood top entry with 2 bolts PG21 thread (high construction) | H16A-TEH-2B-PG21 | 09200160441 |
| housing bulkhead mounted with 1 metal lever | H16A-BK-1L | 09200160301 |
| housing bulkhead mounted with 1 metal lever with plastic COVER | H16A-BK-1L-CV | 09200160321 |
| housing bulkhead mounted with 1 metal lever with metal COVER | H16A-BK-1L-MCV | 09200160331 |
| housing surface mounted with 1 lever M20 thread | H16A-SF-1L-M20 | 19200161250 |
| housing surface mounted with 1 lever two sides M20 thread | H16A-SF-1L-2M20 | 09200160290 |
| housing surface mounted with 1 lever M25 thread | H16A-SF-1L-M25 | 19200160251 |
| housing surface mounted with 1 lever two sides M25 thread | H16A-SF-1L-2M25 | 09200160291 |
| housing surface mounted with 1 lever PG16 thread | H16A-SF-1L-PG16 | 09200160251 |
| housing surface mounted with 1 lever two sides PG16 thread | H16A-SF-1L-2PG16 | 09200160291 |
| housing surface mounted with 1 lever PG21 thread | H16A-SF-1L-PG21 | 09200160252 |
| housing surface mounted with 1 lever M20 thread with plastic COVER | H16A-SF-1L-CV-M20 | 19200160294 |
| housing surface mounted with 1 lever two sides M20 thread with plastic COVER | H16A-SF-1L-CV-2M20 | 19200160295 |
| housing surface mounted with 1 lever M25 thread with plastic COVER | H16A-SF-1L-CV-M25 | 19200160296 |
| housing surface mounted with 1 lever two sides M25 thread with plastic COVER | H16A-SF-1L-CV-2M25 | 19200160297 |
| housing surface mounted with 1 lever PG16 thread with plastic COVER | H16A-SF-1L-CV-PG16 | 09200160221 |
| housing surface mounted with 1 lever two sides PG16 thread with plastic COVER | H16A-SF-1L-CV-2PG16 | 09200160296 |
| housing surface mounted with 1 lever PG21 thread with plastic COVER | H16A-SF-1L-CV-PG21 | 09200160222 |
| housing surface mounted with 1 metal lever M20 thread with metal COVER | H16A-SF-1L-MCV-M20 | 19200160694 |
| housing surface mounted with 1 lever two sides M20 thread with metal COVER | H16A-SF-1L-MCV-2M20 | 19200160695 |
| housing surface mounted with 1 lever M25 thread with metal COVER | H16A-SF-1L-MCV-M25 | 19200160696 |
| housing surface mounted with 1 lever two sides M25 thread with metal COVER | H16A-SF-1L-MCV-2M25 | 19200160697 |
| housing surface mounted with 1 lever PG16 thread with metal COVER | H16A-SF-1L-MCV-PG16 | 09200160651 |
| housing surface mounted with 1 lever two sides PG16 thread with metal COVER | H16A-SF-1L-MCV-2PG16 | 09200160691 |
| housing surface mounted with 1 lever PG21 thread with metal COVER | H16A-SF-1L-MCV-PG21 | 09200160652 |
|
|
