| Brand Name : | ZJHK |
| Model Number : | HK-012/2-MC / HK-012/2-FC |
| Certification : | CE, SGS, CQC, RoHS |
| Price : | negotible |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 5 Days |

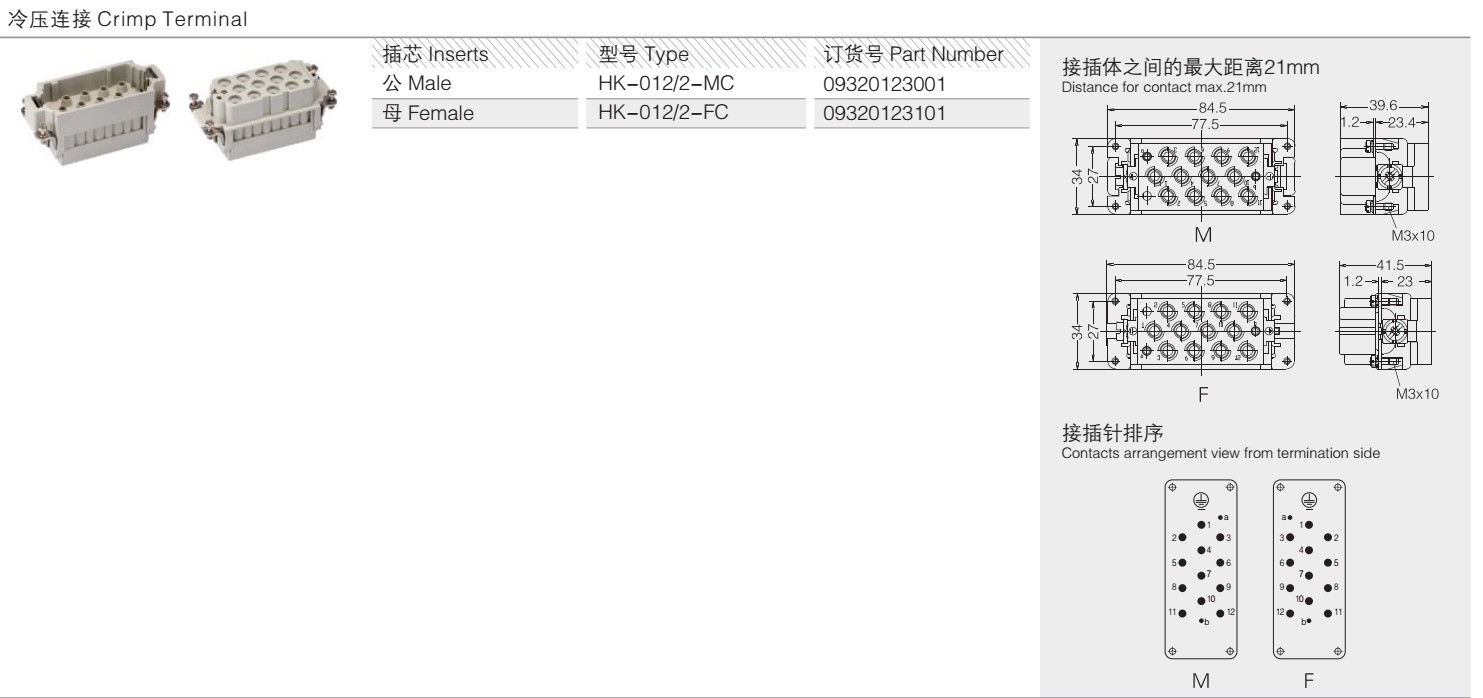

Industrial Multi Wire Connector HK-012/2 Crimp Terminal Connector
Specification
| HK-012/2 INSERTS | |
| Numbers of contacts | 12/2+ PE |
| Electrical performance according to | EN 61 984 |
| Power Supply | |
| Rated current | 40A |
| Rated voltage | 690V |
| Rated impulse voltage | 8KV |
| Pollution degree | 3 |
| Sigal Area | |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated impulse voltage | 4KV |
| Pollution degree | 3 |
| Rated voltage according to UL | 600V/300V |
| Insulation resistance | ≥1010Ω |
| Material | PC |
| Flammability according to (UL94) | V0 |
| Working temperature | -40℃±125℃ |
| Mechanical working life - mating cycles | 500 |
| Power Contacts | |
| Material | Copper alloy |
| Surface | Hard Silver Plated |
| Contact resistance | ≤0.3mΩ |
| Termination | Crimp |
| Wire gauge | 1.5-6mm2 |
| AWG | 16-10 |
| Signal Contacts | |
| Material | Copper alloy |
| Surface | Silver Plated/ Gold plated |
| Contact resistance | ≤3mΩ |
| Termination | Crimp |
| mm2 | 0.14-2.5mm2 |
| AWG | 26-14 |
Hoods/Housing
Material : Die-Cast aluminum
Surface : Powder Coated
Locking Element : Zinc plated / Thermoplastic Corrosion resistant
stainless steel
Temperature Range : -40C + 125 0C
Degree of Protection for Coupled Connector : IP65
Application
Machinery
Energy Distribution
Automation
Construction Machine
Rail Transportation
Robotics
Light and Sound
Features:
1) Fast delivery - we have a large stock for various inserts and covers, upto 2000pcs each part. We can delivery the needed part within 2~10 days.
2) Customers logo and name by laser printing is freely provided.
3) Individual packing for each part or assemblied set packing are both available.
4) After sales service: 12 month
5) Our parts can go well with parts from Harting brand ( same part number), which helps our customers find the correct part easily and avoid any mistake.
FAQ
1 Where is your factory?
Our factory is located in Xuezhai Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325604 China.
2 Are you manufacturer or trading company?
We are manufacturer established in 2011, and have over 7 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
12 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 5-7 days, exact lead time should be confirmed against the final order.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
MOQ: No Limit as we pack indivisually for each part.
T/T:30% deposit and 70% before delivery.
L/C is also acceptable
Ningbo / Shanghai
Small order by DHL, TNT, Fedex, EMS is better for you.
|
|
