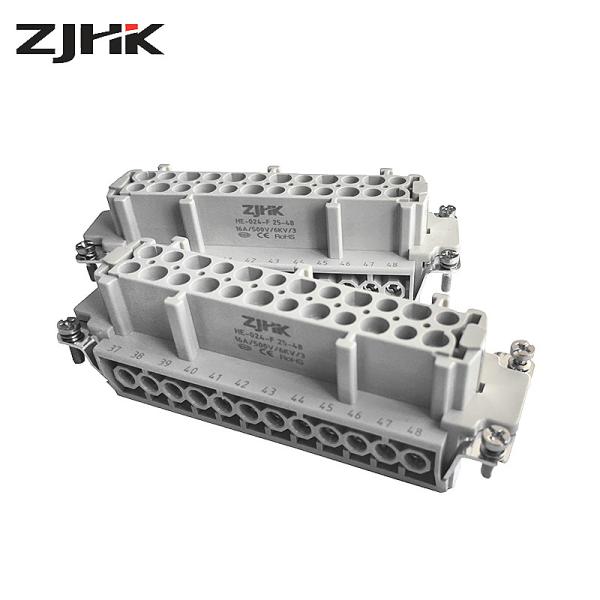

HE-048 Automotive Electrical connectors 48 pin Male Female Inserts Ip65
Applications
Heavy duty connectors are specifically designed for applications in extreme and rough environments. Their modular design makes the distribution of power, signals, pneumatic and data simple and flexible. The connector housings are made of die-cast aluminium and offer excellent protection against dirt, moisture and mechanical stress. The seals and locking levers on connector housing offer a strong protection against outdoor influences such as mechanical shocks, humidity, dust, water or oils, etc.
1). Machine Manufacturing
2). Power Stations
3). Factory Automation
4). Infrastructure
Specification - Insert and Contacts
| Numbers of contacts | 48+PE |
| Electrical performance according to | EN61984 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| or | 16A 400/690V 6KV 2 |
| Rated voltage according to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Flammability according to (UL94) | V0 |
| Working temperature | -40℃±125℃ |
| Mechanical working life - mating cycles | ≥500 |
| Contacts: | |
| Material | Copper alloy |
| Surface | Silver Plated, Gold Plated |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| Wire gauge | 1.0-2.5mm2 |
| AWG | 18-14 |
| Tightening | 0.5Nm |
| Crimp terminal | |
| Wire gauge | 0.14-4.0mm2 |
| AWG | 26-12 |
| Cage- clamp terminal | |
| Wire gauge | 0.14-2.5mm2 |
| AWG | 26-14 |
Application Picture:
-------------------------------------------------------------------------------------------------------------------------------------
Specification - Hood and Housing H48B
The H48B housings are made of high-quality die-cast aluminium alloy, which are light weight and with excellent corrosion-resistant feature.
Our unique stainless steel clips make them waterproof at IP65 and be used even under the harshest environments against frost and vibrations.
-------------------------------------------------------------------------------------------------------------------------------------
Description
1. Locking Levers is made by Stainless steel 304 grade, which give a strong protection against rusting, instead of steel material adopted by many other manufacturers
2. We adopt high quality PC material from SABIC company for the inserts and copper alloy H62 material for contacts to ensure the electrical function.
3.Strong design to make sure more than 500 plugging cycle
4. We own over 10000mm2 of assembly space and reach monthly output of 100,000 pieces.
5. All products is QC checked before packing. We confirms to ISO2008:9001 system and own various test machine, including Silver plating density test machine, flame retardant machine, Salt spray test machine and plugging (push and pull strength) test machine.
-------------------------------------------------------------------------------------------------------------------------------------
