| Brand Name : | ZJHK |
| Model Number : | HA-016-M / HA-016-F |
| Certification : | CE, RoHS, SGS, CQC |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 5 Days |

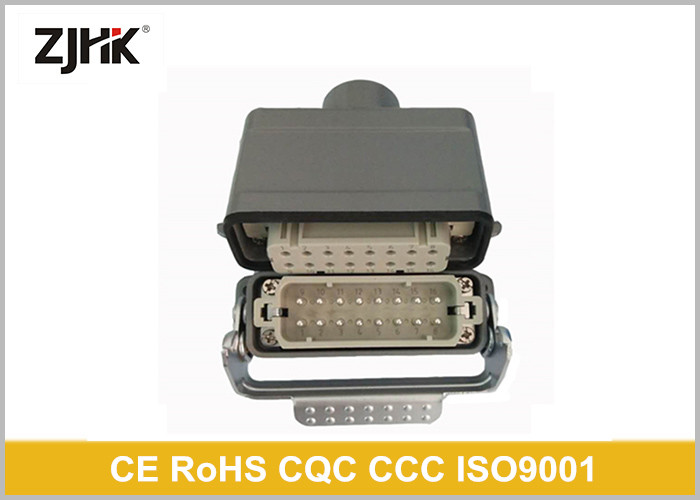

HA-016 Waterproof Deutsch Electrical Connectors of the Slim Inserts
Description
We are supplying a full range of Heavy duty connector.
1. Pre-installation of large numbers and complex circuits can
greatly increase the efficiency of equipment installation and
reduce the wiring mistakes.
2. Heavy-duty connectors provide highly integrated connections, and
a rich combination type, which maximizes the effective utilization
of machine space.
3. The heavy-duty connector makes it convenient and safe for the
equipment to be transported, installed and maintained. Connectors
are widely used in power transmission and distribution.
4. The high degree of protection provided by heavy-duty connectors
(IP65, IP68) offer a great advantage of equipment connection
systems in harsh environments. It provides effective protection in
harsh environments such as dust, rain, cold, ice, and oil.
Specification - Inserts
Numbers of contacts | 16+PE |
Electrical performance according to | EN61984 |
| Rated current | 16A |
| Rated voltage | 250V |
| Rated impulse voltage | 4KV |
| Pollution degree | 3 |
| or | 16A 4KV 2 |
| Rated voltage according to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | Polycarbonate |
| Flammability according to (UL94) | V0 |
| Working temperature | -40℃±125℃ |
| Mechanical working life - mating cycles | ≥500 |
| Contacts: | |
| Material | Copper alloy |
| Surface | Silver Plated, Gold Plated |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| Wire gauge | 1.0-2.5mm2 |
| AWG | 18-14 |
| Tightening | 0.5Nm |
| Crimp terminal | |
| Wire gauge | 0.14-4.0mm2 |
| AWG | 26-12 |
| Cage clamp terminal | |
| Wire gauge | 0.14-2.5mm2 |
| AWG | 26-14 |
Specification - Housing H16A Series
Application:
|
|
