| Brand Name : | ZJHK |
| Model Number : | HMK-003/4-MC / HMK-003/4-FC |
| Certification : | CE, SGS, CQC, RoHS |
| Price : | negotible |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 5 Days |
Inserts
Technical Characteristics
| Type | Inserts |
| Number of contacts | 3(Power) + 4(Signal) + PE |
| Power contacts | |
| Rated current | 40A |
| Rated voltage | 830V |
| Rated Impulse voltage | 8KV |
| Signal contacts | |
| Rated current | 10A |
| Rated voltage | 830V |
| Rated Impulse voltage | 8KV |
| Pollution degree | 3 |
| Rated Voltage Acc.to ul | 600V |
| MecHKnical Working Life-mating Cycles | >=500 |
| Contacts | |
| Material | Copper Alloy |
| Surface | Hard-silver Plated ( 40A ) |
| Hard-silver Plated ( 40A ) ,Hard-silver Plated( 10A ) | |
| Contact Resistance | |
| Power contacts | =< 0.3mΩ |
| Power contacts | 1.5-6mm² |
| Power contacts | 16-10 AWG |
| Signal contacts | =< 3mΩ |
| Signal contacts | 0.14-2.5 mm² |
| Signal contacts | 26-14 AWG |
| Max.insulation diameter of power contacts | 5mm |
| Tool | TL02-0G Crimping Tool, TL06G Contact Removal Tool |
Picture View

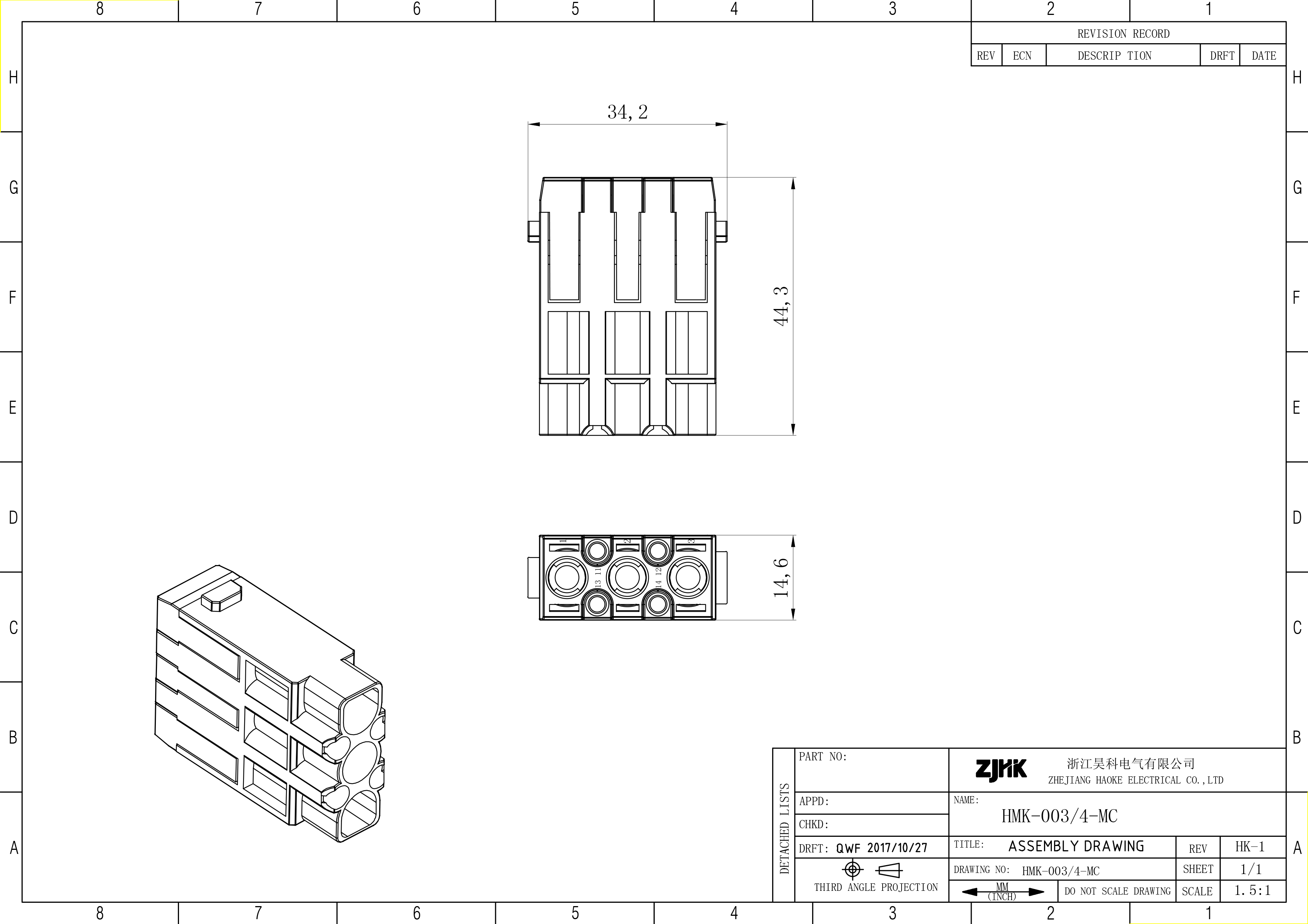

Male inserts
Female inserts
Related Products
40A CRIMP CONTACTS,POWER CONTACTS
FAQ:
1.
Q:Are you manufactory or trade company?
A:We are the manufactory in Wenzhou,Zhejiang Province,China.
2.
Q:If we are interested in your heavy duty connector,can we visit your factory ?
A:Yes. We are normally welcome you visit us and we can learn more from each other.
3.
Q:Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.
A:Of curse we can match harting perfectly.
4.
Q:what’s your advantage compare with Harting,ILME,TE(SIBAS)?
A:Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.
|
|
