| Brand Name : | ZJHK |
| Model Number : | HA-016-MC |
| Certification : | CE, RoHS, SGS, CQC, |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 7 Days |
Inserts, Crimp termination, male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 16 A, Contacts: 16, Conductor cross-section: 0.14 ... 4mm², Copper alloy, Silver plated
Part number: 09 20 016 3001
Technical data
| Identification | |
| Category | Inserts |
| Series | HA |
| Version | |
| Termination method | Crimp termination |
| Gender | Male |
| Size | 16 A |
| Number of contacts | 16 |
| PE contact | Yes |
| Technical characteristics | |
| Conductor cross-section | 0.14 ... 4 mm² |
| Rated current | 16 A |
| Rated voltage | 250 V |
| Rated impulse voltage | 4 kV |
| Pollution degree | 3 |
| Rated voltage acc. to UL | 600 V |
| Insulation resistance | ≥ 1010 Ω |
| Limiting temperature | -40 ... +125 °C |
| Tightening torque | 0.5 Nm |
| Mating cycles | ≥ 500 |
| Material properties | |
| Material (insert) | Polycarbonate |
| Colour (insert) | RAL 7032 (pebble grey) |
| Material (contacts) | Copper alloy |
| Surface (contacts) | Silver plated |
| RoHS | compliant with exemption |
| Commercial data | |
| Packaging size | 1 |
| Net weight | 65.5 g |
| Country of origin | China |
| eCl@ss | Contact insert for industrial connectors |
Notice:

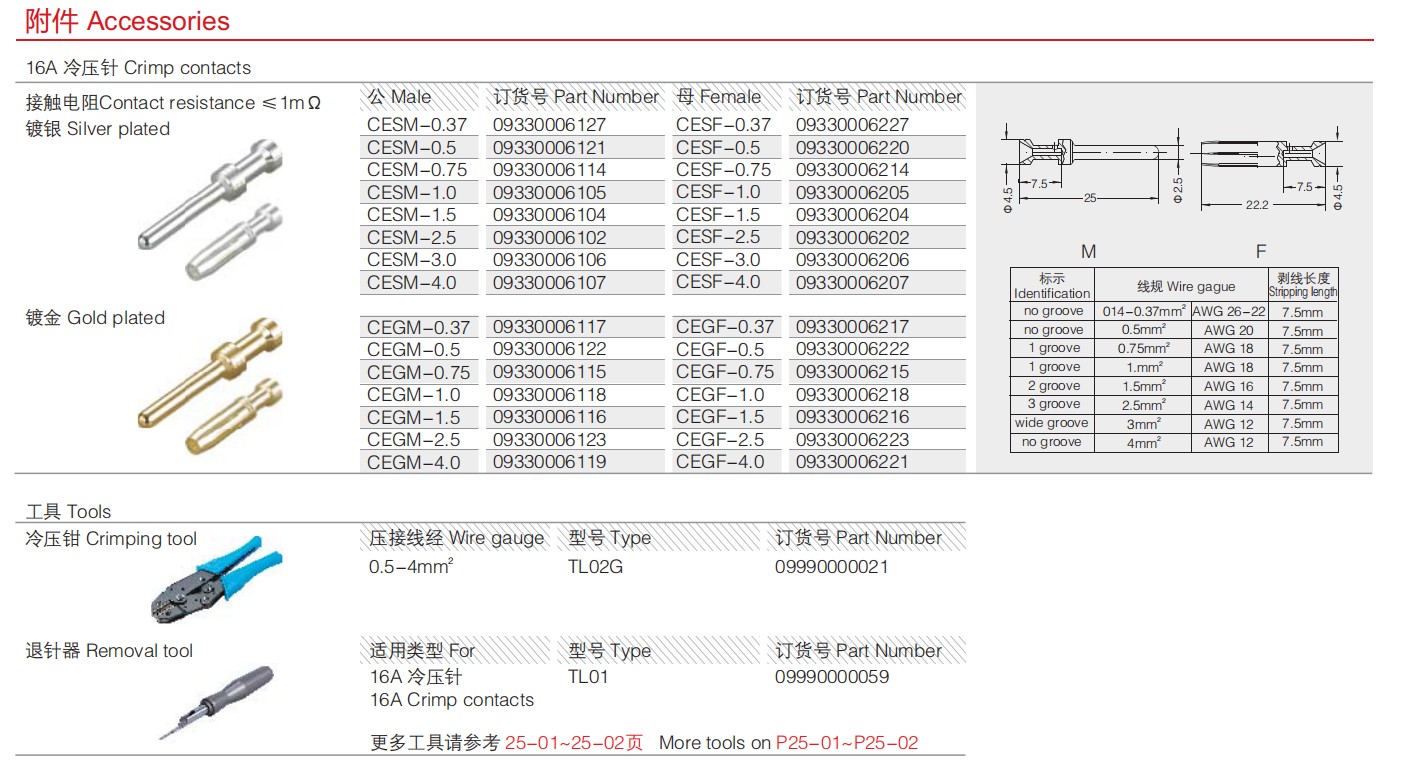

Please order crimp contacts separately.
Match:
Hood and Housing - H16A Series
Hood - Side Entry / Top Entry - High Construction for larger wire
is available
Housing - Bulkhead / Surface Mounting / Cable to Cable
Locking levers : Double in Stainless Steel or Zinc plated Steel
Protective covers: plastic or metal cover optional
Thread: PG16, PG21,/ M20, M25
