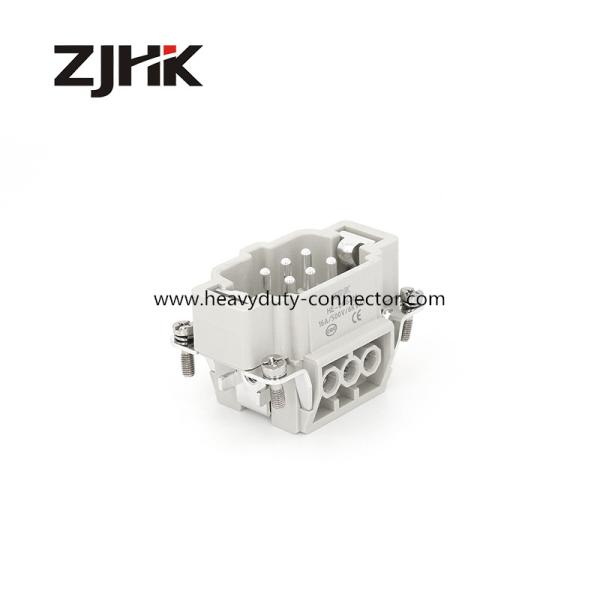

    500V Screw In 6 Pin Heavy Duty Connector Fit Injection Molding Machine

    Ask Lasest Price
    Brand Name : ZJHK
    Model Number : HE-006-M
    Certification : CE, RoHS, SGS, CQC,
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 100,000 pcs per month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    500V Screw In 6 Pin Heavy Duty Connector Fit Injection Molding Machine

    500V 6 Pin Screw 6 Pin Male Heavy Duty Connector Fit Injection Molding Machine

    Match Han E 06 Pos. F Insert Screw

    Inserts, Screw termination, Female


    Fit ABB KUKA FANUC Robots Industrial solution


    Part number: 09330062601

    Technical data

    Version
    Termination methodScrew termination
    GenderMale
    Size6B
    With wire protectionYes
    Number of contacts6
    PE contactYes
    Technical characteristics
    Conductor cross-section0.75 ... 2.5 mm²
    Conductor cross-sectionAWG 18 ... AWG 14
    Rated current16A
    Rated voltage500 V
    Rated impulse voltage6 kV
    Pollution degree3
    Rated voltage acc. to UL600 V
    Insulation resistance> 1010 Ω
    Contact resistance≤ 1 mΩ
    Limiting temperature-40 ... +125 °C
    Stripping length7.5 mm
    Tightening torque0.5 Nm
    Mating cycles≥ 500
    Material properties
    Material (insert)Polycarbonate
    Colour (insert)RAL 7032 (pebble grey)
    Material (contacts)Copper alloy
    Surface (contacts)Silver plated
    RoHScompliant with exemption
    Commercial data
    Packaging size1
    Net weight48g
    Country of originChina
    Chinese customs tariff number

    8536901900


    Design drawing:




    Our Services


    1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.
    2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.
    3. Inspections:100% test before delivery.Package will do after several discussions with you.
    4. Free samples for your test,The products are directly from our factory. So it saves a lot secondary cost.
    5. OEM and ODM are acceptable,Please send us your design and other important information. OEM are always welcome.
    6. Fast door to door delivery service ,Trail order and small order are acceptable
