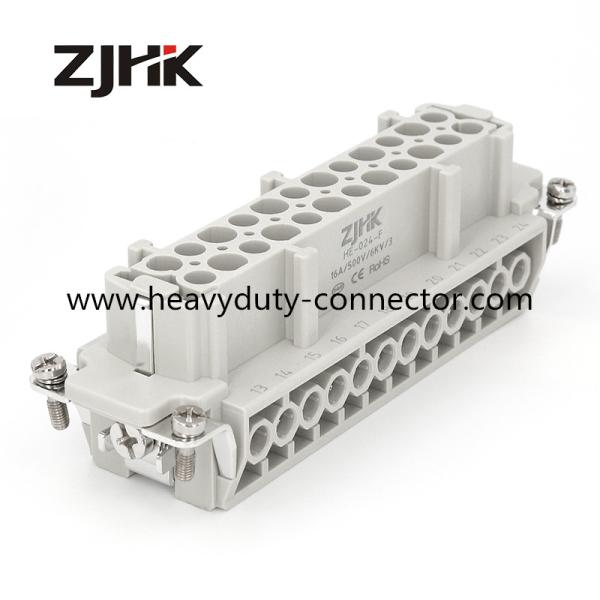

    24 Pin Heavy Duty Multi Pin Connectors Female Insert Hot Runner Connector

    Ask Lasest Price
    Brand Name : ZJHK
    Model Number : HE-024-F
    Certification : CE, RoHS, SGS, CQC,
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 100,000 pcs per month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    24 Pin Heavy Duty Multi Pin Connectors Female Insert Hot Runner Connector

    Hot runner 24Pin connector .Robot connector.


    Inserts, Screw termination, male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.75 ... 2.5mm², Silver plated

    Support Industrial 4.0 solution



    Technical data

    Identification
    SeriesHE
    Version
    Termination methodScrew termination
    GenderFemale
    Size24 B
    Number of contacts24
    PE contactYes
    Material (contacts)Copper alloy Silver plated
    Technical characteristics
    Conductor cross-section0.75 ... 2.5 mm²
    Conductor cross-sectionAWG 18 ... AWG 14
    Rated current16 A
    Rated voltage500 V
    Rated impulse voltage6 kV
    Pollution degree3
    Rated voltage acc. to UL600 V
    Insulation resistance> 1010 Ω
    Limiting temperature-40 ... +125 °C
    Mating cycles≥ 500
    Material properties
    Material (insert)Polycarbonate
    Material flammability class acc. to UL 94V-0
    RoHScompliant
    Commercial data
    Packaging size1
    Net weight122.4g
    Country of originChina




    Industrial 4.0 solution

    Hot runner application

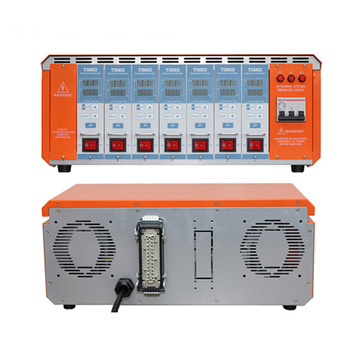

    Temperature conntroller application

    Exhibition


    Our Services

    1. We are professional supplier,so we provide Low MOQ: It can meet your business very well.
    2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends.
    3. Inspections:100% test before delivery.Package will do after several discussions with you.
