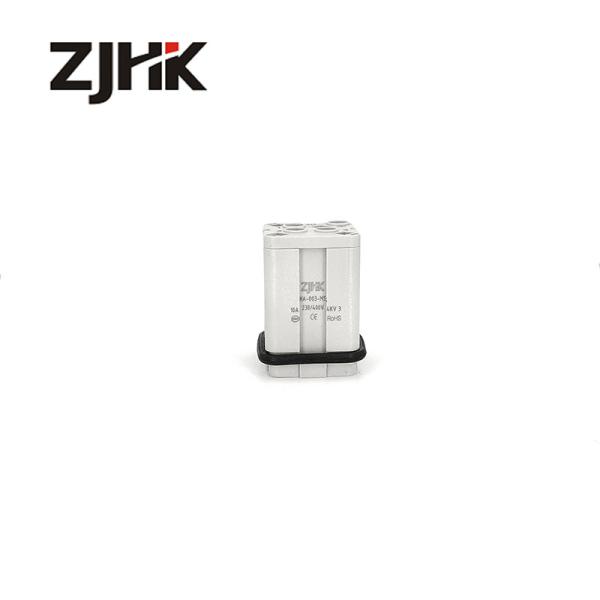

Similer as Harting Han 3A male insert with Quick-Lock
Inserts, Quick Lock® termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated
current: 10A, Size: 3 A, Contacts: 3, 1
Compatible with Harting 3A Series
HA series can replace harting connectors perfectly with same
mounting dimensions. For example, our customers can use our male
insert HA-003-M to go with HA-003-F from harting company. The two
parts can work well.
Assembly Kits
1) Male insert, screw terminal HA-003-M
2) Female insert, screw terminal HA-003-F
3) Hood H3A-TE-2B-PG11
4) Housing H3A-BK-1L
5) we will provide a free cable gland for our customers.
Technical data
| Category | Inserts |
| Series | HA |
| Version | |
| Termination method | HA-Quick Lock® termination |
| Gender | Male |
| Size | 3A |
| Number of contacts | 3 |
| Technical characteristics | |
| Conductor cross-section | 0.14 ... 2.5 mm² |
| Rated current | 10 A |
| Rated voltage conductor-earth | 230 V |
| Rated voltage conductor-conductor | 400 V |
| Rated impulse voltage | 4 kV |
| Pollution degree | 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥ 1010 Ω |
| Limiting temperature | -40 ... +125 °C |
| Mating cycles | ≥ 500 |
| Material properties | |
| Material (insert) | Polycarbonate |
| Surface (contacts) | Silver plated |
| Commercial data | |
| Packaging size | 1 |
| Net weight | 15.26 g |
| Country of origin | China |
Features
1) we are professional manufacturer for heavy duty connector 7
years and always focusing on quality.
2) we own full production line for HA, HE, HEE, HD, HDD, HM, HK,
HSB and always develop new models upon market and customer's
requirement
3) our part number is same as Harting connector and our customer
can choose the needed connectors quickly and easily
4) we have plenty of stock for full series and provide our
customers a fast delivery within 24 hours.
5) we provide a warranty period 12 months for our customers.
|
|
