| Brand Name : | ZJHK |
| Model Number : | HE-016-M |
| Certification : | CE, RoHS, SGS, CQC, |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 7 Days |

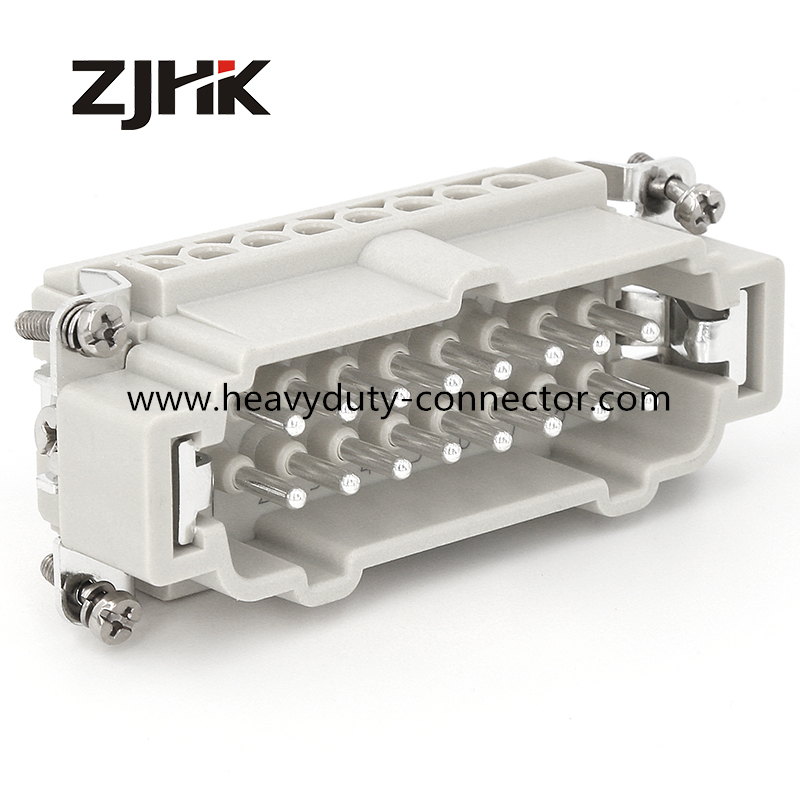

ZJHK HE-016-M 16Pin Industrial connector
connect machine with controller
Part number:09330162601
Technical data
| Category | Inserts |
| Type | HE SERIES |
| Version | |
| Termination method | Screw termination |
| Gender | Male |
| Size | 16B |
| With wire protection | Yes |
| PE contact | Yes |
| Technical characteristics | |
| Conductor cross-section | 0.14 ... 2.5 mm² |
| Rated current | 16A |
| Rated voltage | 500 V |
| Rated impulse voltage | 6 kV |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | > 1010 Ω |
| Contact resistance | ≤ 1 mΩ |
| Mating cycles | ≥ 500 |
| Material (insert) | Polycarbonate |
| Colour (insert) | RAL 7032 (pebble grey) |
| Material (contacts) | Copper alloy |
| Surface (contacts) | Silver plated and Gold plated |
| Material flammability class acc. to UL 94 | V-0 |
MORE DEATILS:
Perfect for Hot runnber connector 16Amp 16Pin
| 1. We are professional supplier,so we provide Low MOQ: It can meet your business very well. |
| 2. We work with dozens of factories to ensure competitive price, We also will treat you as our friends. |
| 3. Inspections:100% test before delivery.Package will do after several discussions with you. |
| 4. Free samples for your test,The products are directly from our factory. So it saves a lot secondary cost. |
| 5. OEM and ODM are acceptable,Please send us your design and other important information. OEM are always welcome. |
|
|
