| Brand Name : | ZJHK |
| Model Number : | HE-006-FC |
| Certification : | CE, RoHS, SGS, CQC, |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 7 Days |

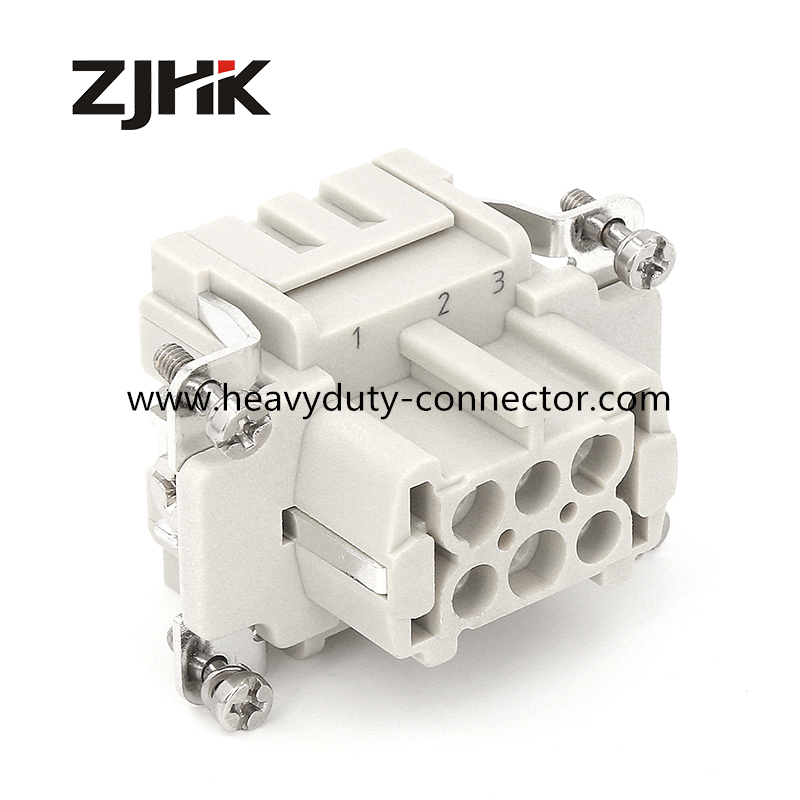

Inserts, Crimp termination, Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.14 ... 4mm²
Part number: 09 33 006 2702
Support Industrial 4.0 solution
Technical data
| Identification | |
| Category | Inserts |
| Series | HE |
| Version | |
| Termination method | Crimp termination |
| Gender | Female |
| Size | 6 B |
| Number of contacts | 6PIN |
| PE contact | Yes |
| Technical characteristics | |
| Conductor cross-section | 0.14 ... 4 mm² Please order crimp contacts separately. |
| Conductor cross-section | AWG 26 ... AWG 12 |
| Rated current | 16 A |
| Rated voltage | 500 V |
| Rated impulse voltage | 6 kV |
| Pollution degree | 3 |
| Rated voltage acc. to UL | 600 V |
| Rated voltage acc. to CSA | 600 V |
| Insulation resistance | > 1010 Ω |
| Limiting temperature | -40 ... +125 °C |
| Mating cycles | ≥ 500 |
| Material (insert) | Polycarbonate |
| Colour (insert) | RAL 7032 (pebble grey) |
| Material flammability class acc. to UL 94 | V-0 |
| RoHS | compliant |

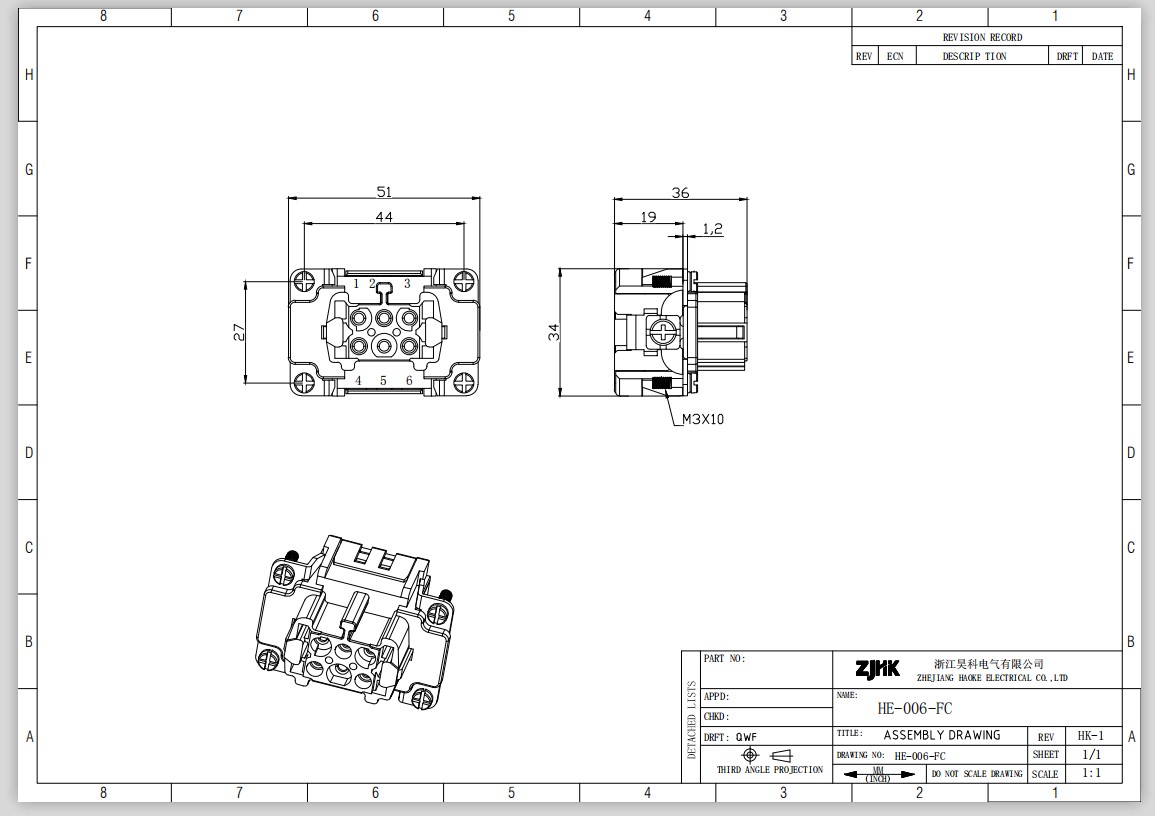

Design drawing:
Notice:
Please order crimp contacts separately.
