| Brand Name : | ZJHK |
| Model Number : | HE-016-FZ |
| Certification : | CE, RoHS, SGS, CQC, |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 7 Days |
Inserts, Quck Lock termination, male, Polycarbonate, RAL 7032
(pebble grey), Rated current: 16A, Contacts: 10, Conductor
cross-section: 0.14 ... 2.5mm², Copper alloy,
Silver plated
Auto Industrial 4.0 solution
Fast contact way ,just need a screw to do this,fast work.
Technical data
| Type | |
| Termination method | Quck Lock insert |
| Gender | Female |
| Size | 16B size |
| With wire protection | Yes |
| Number of contacts | 16 |
| Technical characteristics | |
| Conductor cross-section | 0.14 ... 2.5 mm² |
| Conductor cross-section | AWG 26 ... AWG 14 |
| Rated current | 16A |
| Rated voltage | 500 V |
| Rated impulse voltage | 6 kV |
| Pollution degree | 3 |
| Rated voltage acc. to UL | 600 V |
| Rated voltage acc. to CSA | 600 V |
| Insulation resistance | > 1010 Ω |
| Contact resistance | ≤ 1 mΩ |
| Limiting temperature | -40 ... +125 °C |
| Stripping length | 7 ... 9 mm |
| Tightening torque | 0.5 Nm |
| Mating cycles | ≥ 500 |
| Material properties | |
| Material (insert) | Polycarbonate |
| Colour (insert) | RAL 7032 (pebble grey) |
| Material (contacts) | Copper alloy |
| Surface (contacts) | Silver plated 3 thickness |
| RoHS | compliant with exemption |
| Commercial data | |
| Packaging size | 1 |
| Country of origin | China |
| Chinese customs tariff number | 8536901900 |
Deatils photo:
Female part

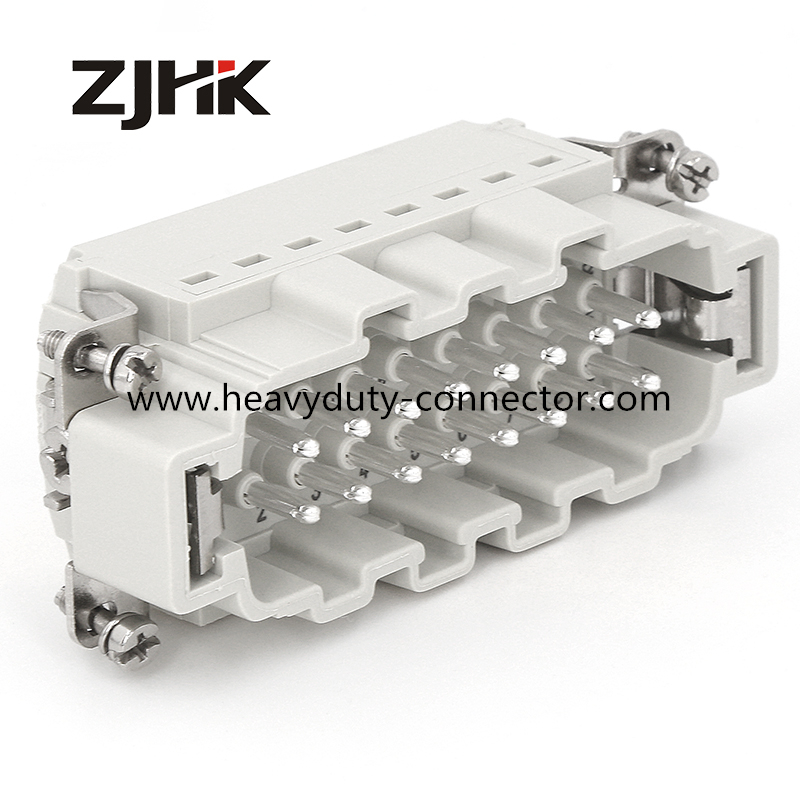

Male part
