| Brand Name : | ZJHK |
| Model Number : | H48B-BK-1L-CV |
| Certification : | CE, RoHS, SGS, CQC |
| Price : | negotible |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 / Month |
| Delivery Time : | 5 Days |

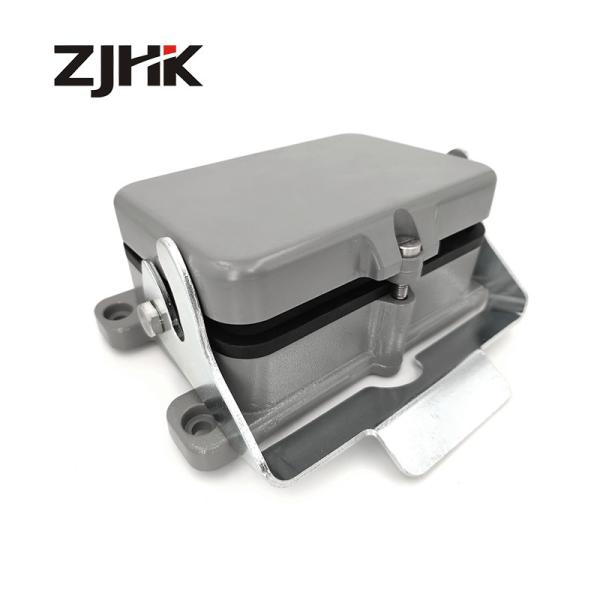

Bulkhead mounted housings, With plastic cover, Size: 48 B,
Low construction, Single locking lever, Stainless steel/Lever
Artikelnummer: 09300480301
Technical data
| Identification | |
| Category | Hoods/Housings |
| Series of hoods/housings | HB |
| Type of hood/housing | Bulkhead mounted housings |
| Description of hood/housing | With plastic cover |
| Type | Low construction |
| Version | |
| Locking type | Single locking lever |
| Size | 48 B |
| Field of application | Standard hoods/housings for industrial connectors |
| Limiting temperature | -40 ... +125 °C |
| Degree of protection acc. to IEC 60529 | IP65 |
| Material properties | |
| Material (hood/housing) | Aluminium die-cast |
| Surface (hood/housing) | Powder-coated |
| Colour (hood/housing) | Grey or per customer order |
| Material (seal) | NBR |
| RoHS | compliant |
| China RoHS | e |
| Commercial data | |
| Packaging size | Indivisual part piece package |
| Country of origin | China |
| Brand | ZJHK |
Features
1) Compatible with Harting 48B Series Hood and Housing
2) Numerous in mounting varieties and entry thread
3) Locking Levers made by Stainless Steel 304.
4) Salt Spray Test withstand more than 96 hours.
Main Equipment: Injection machine, Die casting machine, Punching machine, CNC
Lathe Machines, Surface Treatment, Laser printing machine, etc
Main Test Facility: temperature measuring device, voltage / insulation resistance
tester, Silver plating density test machine, flame retardant
machine, Salt spray test machine and push and pull strength test
machine.
Staff and Workshop: 50 workshop staff and 10 Engineers focus for heavy duty connector
from Mold design, Production, Assembling, Packing and Test.
Output: 100,000pcs~150,000pcs.
OEM: We own hundreds of mold and our engineer are skilled to open new
mold upon customer sample. Customer logo and name on connectors is
available.
Warranty: 100% QC checked before selling. And if any quality
problem, our engineer will response within 24 hours.
|
|
