| Brand Name : | ZJHK |
| Model Number : | HEE-010-MC |
| Certification : | CE, RoHS, SGS, CQC, |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 7 Days |
Inserts, Crimp termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 6 B, Contacts: 10, Conductor cross-section: 0.14 ... 4mm²
Identification | |||
Series | HEE series | ||
Part No. | 09320103001 | ||
Version | |||
Termination method | Crimp termination | ||
Gender | Male | ||
Size | 6B | ||
With wire protection | Yes | ||
PE contact | Yes | ||
Material (contacts) | Copper alloy | ||
Contact identification | 1...10 | ||
Technical characteristics | |||
Conductor cross-section | 0.14 ... 4 mm² | ||
Conductor cross-section | AWG 26 ... AWG 12 | ||
Rated current | 16A | ||
Rated voltage | 500 V | ||
Rated impulse voltage | 6 kV | ||
Insulation resistance | ≥ 1010 Ω | ||
Contact resistance | ≤ 1 mΩ | ||
Limiting temperature | -40 ... +125 °C | ||
Mating cycles | ≥ 500 | ||
Material properties | |||
Material (insert) | Polycarbonate | ||
Colour (insert) | RAL 7032 (pebble grey) | ||
Material (contacts) | Copper alloy | ||
Surface (contacts) | Silver plated & Golde plated | ||
RoHS | compliant with exemption | ||
| Details | Please order crimp contacts separately. | ||
| Country of origin | China | ||
Deatils photo:

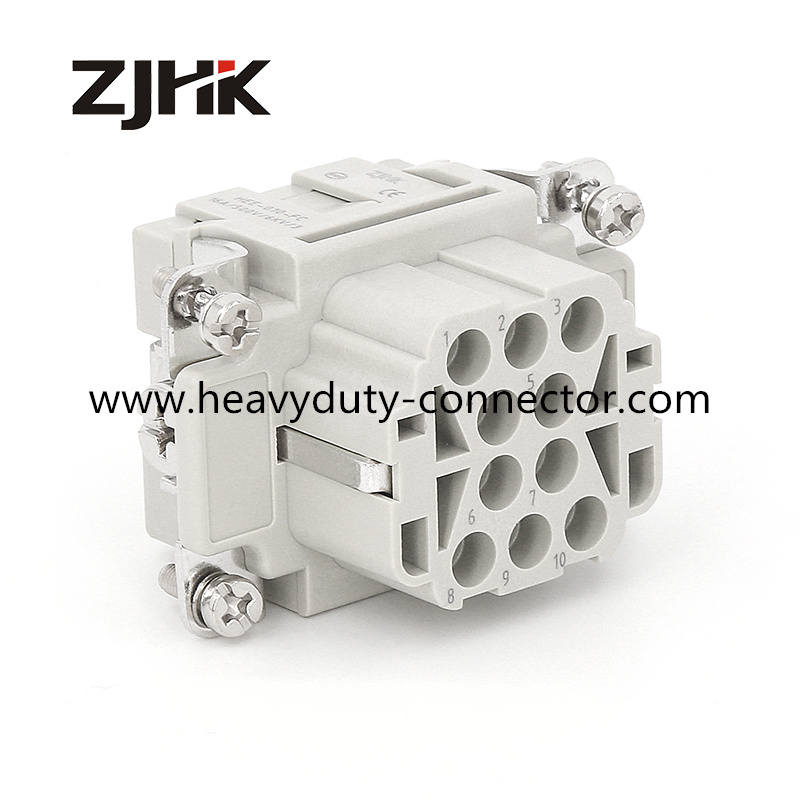

Male part
