70A Crimp Module Combined Inserts Heavy Duty 2 Pin Connector Replace Han 09140023002
Crimp module insert
Order number:09140023002(Male)& 09140023102(Female)
Manufacturer | ZJHK |
Type of connector | rectangular |
Connector | Module |
Kind of connector | Male and Female |
Connector series | HM 40A Flexible and Combined Connector Crimp Terminal Insert |
Descriptions | Flexible Combination Heavy Duty Power Connector Insert, 2 Poles , 1000V, 40A, Crimp Terminal. (Order Crimp Contacts Separately) |
Connector variant | w/o contacts |
Electrical mounting | crimped |
Power Contact Rated Current | 40A |
Power Contact Rated Voltage Acc. to EN61 984 | 1kV |
Mating Cycle (Mechanical Working Life) | >= 500 |
Size | Used with Hinged Frame |
Working Temperature Range | -40⁰C … +125⁰C |
Rated Impulse Voltage | 8KV |
Contact Resistance | <= 0.3mΩ |
Insulation Resistance | >=10^10Ω |
Pollution Degree | Ⅲ |
Wire Gauge | AWG 16 - AWG8 (1.5mm² – 10mm² ) |
Tool | TL02-0G/TL02-3G Crimping Tool, TL06G Contact Removal Tool |
Material of Inserts | Polycarbonate |
Contacts | Hard-Silver Plated Copper Alloy |
The ZJHK-Modular® System can be put together as per each requirement from various basis modules. It can be used practically as proven standard contacts and housing
Suitable crimp contacts must be ordered separately!
Complete product composition
Related Products
CCSM&CCSF
Available Options
40A Crimp Contact Wire Gauge
Copper Alloy with Silver Plated Finish
1.5mm - AWG16- ø1.75
2.5mm - AWG14- ø2.25
4mm - AWG12- ø2.85
6mm - AWG10- ø3.5
10mm - AWG8- ø4.3

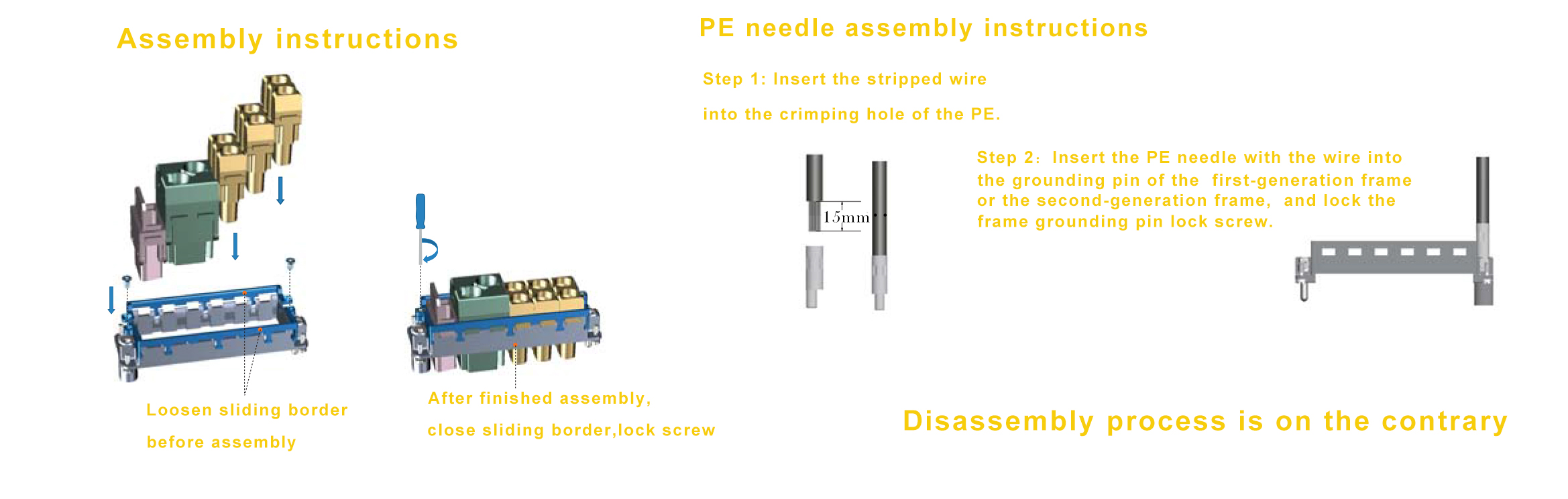

Module installation and disassembly diagram
Heavy duty connector makes an effective electrical and mechnical connection for various industrial application. Compared to traditional industrial connectors, the heavy duty connectors provide a IP65 protection against harsh environment and save 30~50% labour cost in installation and mantaince.
Therefore, it is widely used in mechinery, electrical control, railway transportation, automation, robotics, wind energy and engery distribution.
