    6 Pin 36 Pos Signal Connector Inserts 09380423001 09380423101

    Ask Lasest Price
    Brand Name : ZJHK
    Model Number : HK-006/36-Mc / HK-006/36-Fc
    Certification : CE, SGS, CQC, RoHS
    Price : negotible
    Supply Ability : 10,000 pcs per month
    Delivery Time : within 10 days after payment
    • Product Details
    • Company Profile

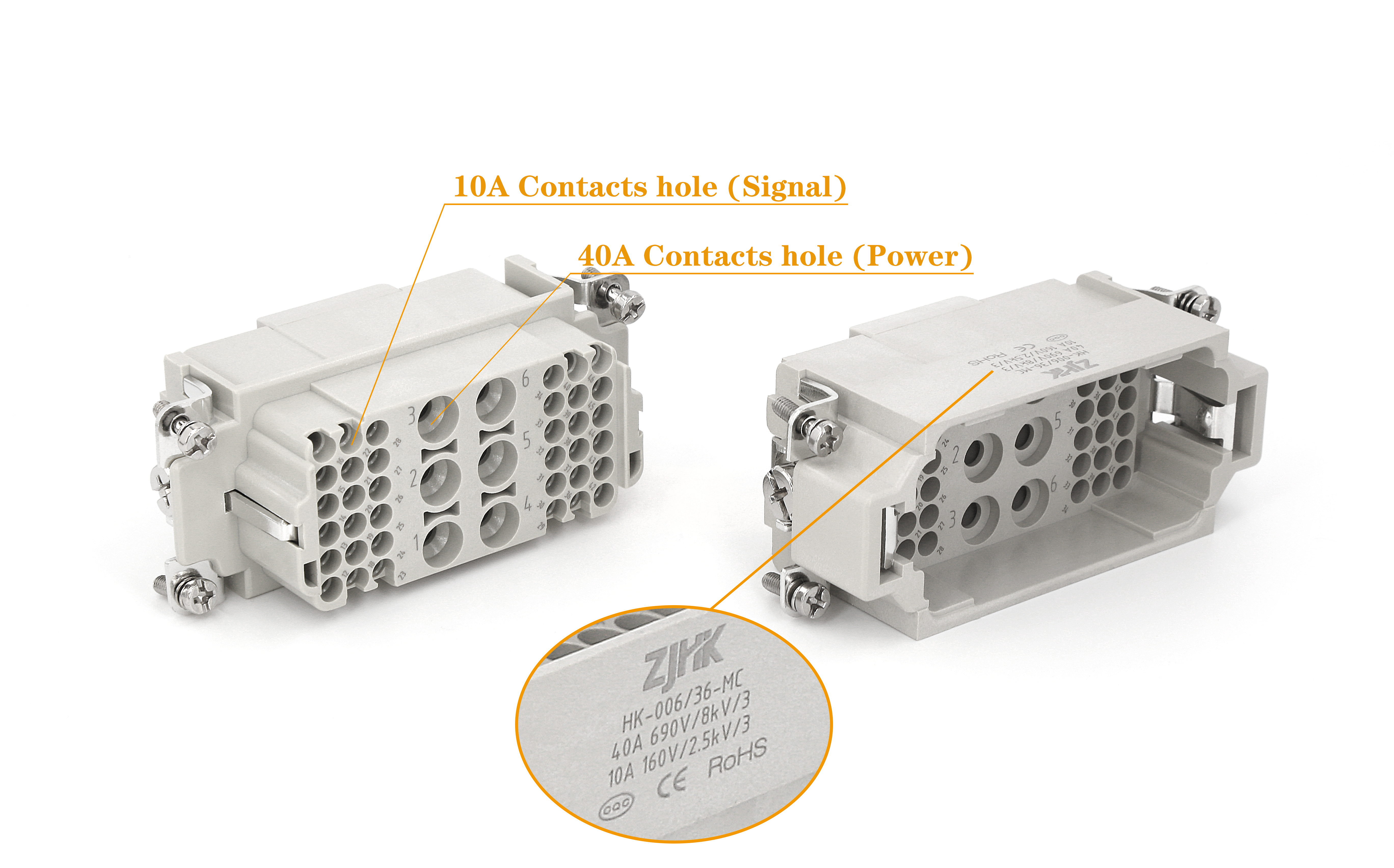

    6 Pin 36 Pos Signal Connector Inserts 09380423001 09380423101

    6 pin add 36 pos Signal Connector inserts


    Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌40 A, Size: 16 B


    Contacts: 6, + 36 additional signal contacts, Conductor cross-section: 1.5 ... 6 mm², 0.14 ... 2.5 mm² Signal

    Part number: 09 38 042 3001/09 38 042 3101


    CategoryInserts
    SeriesHK series
    IdentificationHK 006/36
    Termination methodCrimp termination
    GenderMale and Female
    Shell Size fit16B
    Number of Power contacts6 (40A)
    Additional contacts36 additional signal contacts (10A)
    PE contactYes
    RemindPlease order crimp contacts separately.
    Conductor cross-section (40A)1.5 ... 6 mm²
    Conductor cross-section (10A)0.14 ... 2.5 mm² Signal
    Wire outer diameter≤5 mm
    Rated current40 A
    Rated voltage690 V
    Rated impulse voltage8 kV
    Rated current (signal)10 A
    Rated voltage (signal)160 V
    Rated impulse voltage (signal)2.5 kV
    Pollution degree3
    Insulation resistance>1010 Ω
    Limiting temperature-40 ... +125 °C
    Mating cycles≥ 500
    RoHScompliant
    Packaging size1 of each gender in a bag
    Country of originChina







    It has been possible to house four power contacts plus a separate PE (protective earth) contact by making maximum use of the available space and by using space-saving axial screw terminations. These power contacts and the PE contact can be used for AWG of up to 16-10 , allowing current-carrying capacities of up to 40 A to be achieved.

    Data of Drawing

    Male :




    Female :


    Both the female and male inserts are finger safe and can be used in many diverse applications.
    The combination of very compact size and the finger protection of the female and male contacts make the new insert a viable alternative to circular IEC EN60309 connectors for many applications.
