| Brand Name : | ZJHK |
| Model Number : | HMD-012-MC / HMD-012-FC |
| Certification : | CE, SGS, CQC, RoHS |
| Price : | negotible |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100,000 pcs per month |
| Delivery Time : | 5 Days |
TYPE:HMD-012-MC/HMD-012-FC
Part number:
09140123001(Male)
09140123101(Female)
• 12 Pin Pcrimp contacts
• Modules are polarised
• Use crimp tool stock with locator stock
• Extraction tool is stock n
• Mating cycles ≥ 500
• Heavy duty power connector
| Accessory Type | Module |
| Gender | Male and Female |
| Current Rating | 10A |
| Voltage Rating | 250 V |
| Number of Contacts | 12 |
| Range | HM |
| Series | ZJHK H-Modular |
| Number of Rows | 2 |
| Termination method | Crimp termination |
| Details | Please order crimp contacts separately. |
| Conductor cross-section | 0.14 ... 2.5 mm² |
| Rated current | 10 A |
| Rated voltage | 250 V |
| Rated impulse voltage | 4 kV |
| Pollution degree | 3 |
| Limiting temperature | -40 ... +125 °C |
| Mating cycles with other HMC components | ≥ 10,000 |
| Material (insert) | Polycarbonate (PC) |
| Country of origin | China |

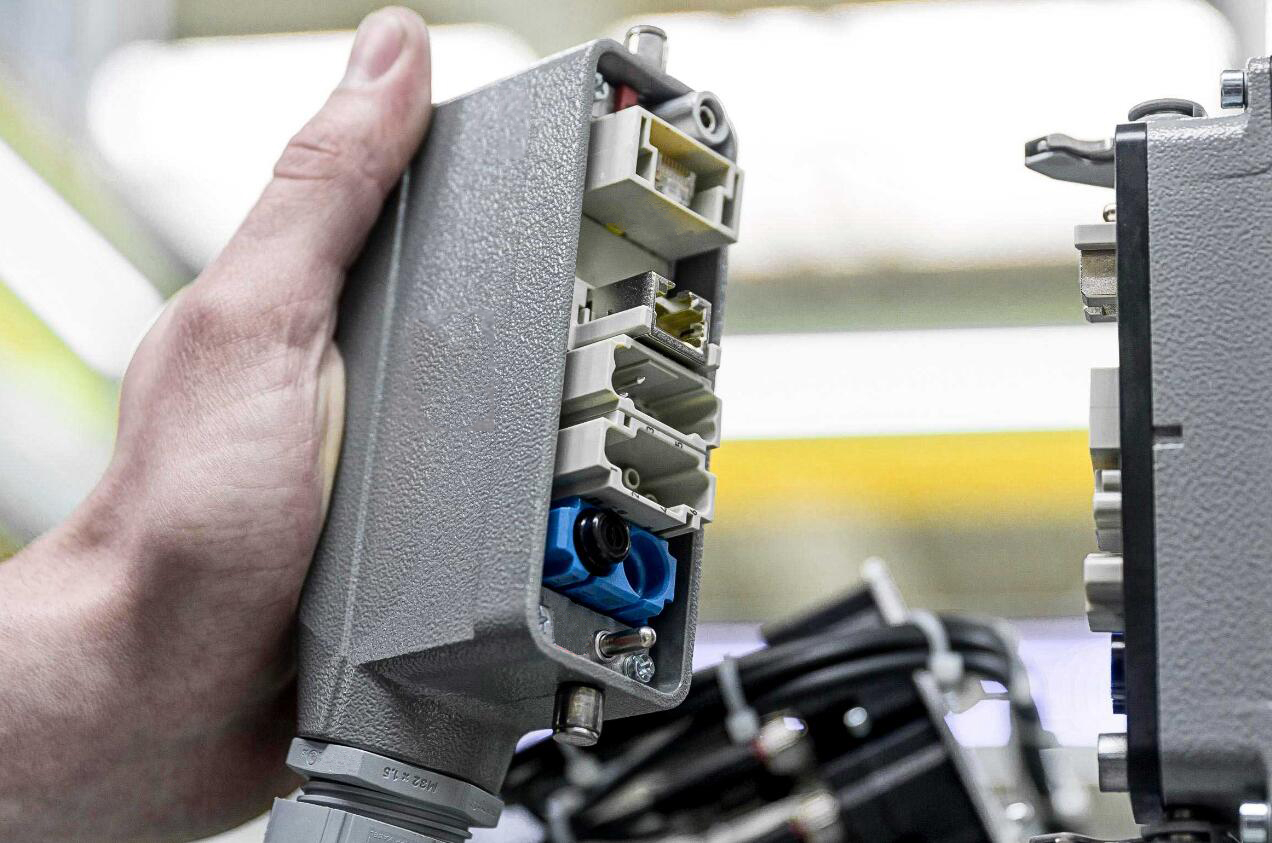

The H-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard ZJHK housings.
The system allows a variety of insert configurations within the one connector assembly.
The ZJHK H-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection.
HAOKE offers appropriate crimping tools for different levels of automation for all connectors.
1.
Q:Free Sample.
A:we provide small products to check quality for you, just you pay
the express fees.
2.
Q:What’s your material for inserts ?
A:In order to guarantee the quality of the products, we use the imported material SABIC 3412 for injection molding.
3.
Q:Do you have any agent around word?
A:Yes ,We are honored to be favored by Korean and Italian (Northern) customers and have signed an agency agreement.
4.
Q:Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.
A:Of curse we can match harting perfectly.
5.
Q:I were use Harting brand before,can i tell you their order number to help me match ?
A:Of course you can help you.Actually , in order to facilitate the use of harting's customers, we have set the order number to be the same as HARTING, so that customers can match and replace.
|
|
