    09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert

    Ask Lasest Price
    Brand Name : ZJHK
    Model Number : HE-024-MS/FS
    Certification : CE, RoHS, SGS, CQC,
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 100,000 pcs per month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    09330242616 24P Electrical Heavy Duty Connector 16A With Female Insert

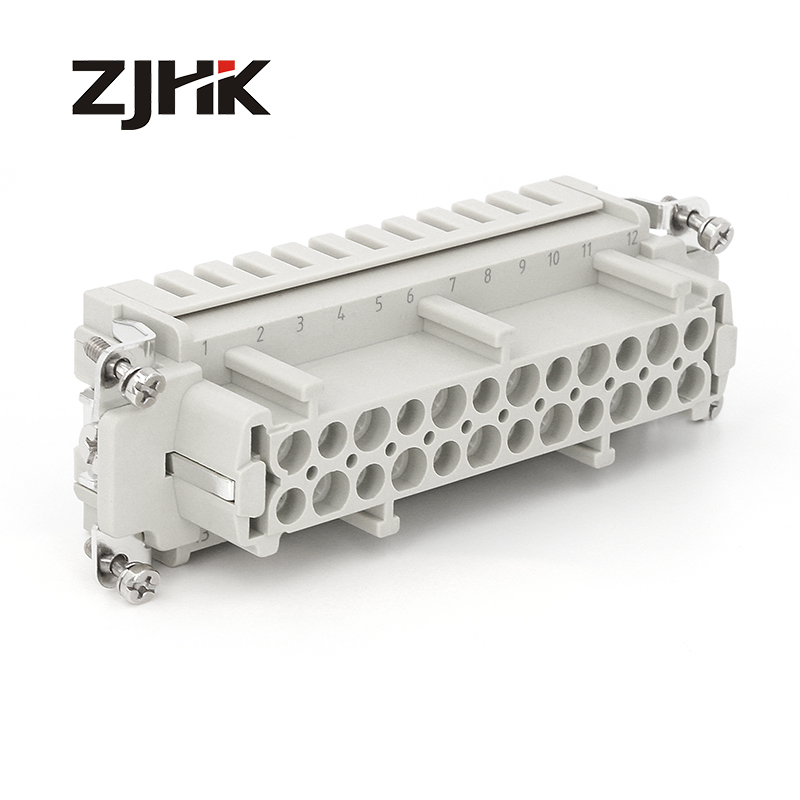

    16A 24 PIN heavy duty cage clamp inserts


    The 09330242616&09330162716 is a 24-contact rectangular HE S Male &Female Cage-clamp Terminal Insert, 24B size, 0.14 to 2.5mm² wire cross section area with cage-clamp terminals. Made of polycarbonate, RAL 7032 (light grey) color insert.


    • 500 Mating cycles
    • UL94V-0 Flammability rating

    Applications

    Industrial


    Type:Male&Female Insert
    Contact Connection Type:Cage-Clamp
    Positions:24P
    Rating - Current:16A
    Rating - Voltage:500V
    Mounting Code-Series Size:24B
    Wire Range:26-14 AWG
    Number of Contacts:24 + Ground
    Position Marking:1-24
    Material, Insert:Polycarbonate
    Termination Method:Cage-Clamp Terminal
    Temperature Rating:-40 to 125 Degree C (-40 to 257 Degree F)
    Material Rating:UL 94 V-0
    Manufacturer Model:HE
    Stripping length7-9mm
    Surface of contactsSilver plated

    Details of inserts (male&female)



    FAQ:


    • what’s your advantage compare with Harting,ILME,TE(SIBAS)?

    Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.


    • Is your company fully automated?

    Yes,Most of our production is fully automated.


    • Q:Your rectangular connector seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others

    A: Our HDC special for Industrial 4.0 solution are high quality customized.We use the imported material SABIC 3412 for heavy duty connector inserts .Not all the HDC Material are the same !!


    4.Q:I were use Harting brand before,can i tell you their order number to help me match ?


    A:Of course you can help you.Actually , in order to facilitate the use of harting's customers, we have set the order number to be the same as HARTING, so that customers can match and replace.
